Garmin Striker Vivid 7sv 7"" Fishfinder Gps Track Plotter With Gt52 Not 010-02553-00
Garmin
- Garmin:
- Authorized Reseller
- Warranty:
- Full Manufacturer Warranty
- MPN:
- 010-02553-00
- SKU:
- WTGAR0100255300
- UPC:
- 753759268381
Estimated delivery
if you place order before 3pm EST
Usually ships the same business day.
30 day returns. | See Details

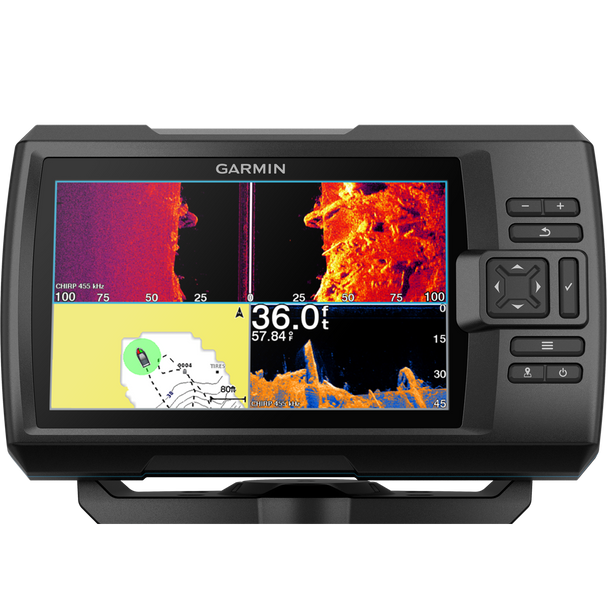

Garmin STRIKER™ Vivid 7sv with GT52 Transducer
Model: 010-02553-00- The sonar color you pick says a lot about your fishing style. Good thing there are 7 new vivid options.
- What a view. Use the included transducer to get CHIRP traditional, ClearVü and SideVü sonars.
- Never lose a hot spot again. Use waypoint marking to find your way back.
- What’s under the water’s surface looks pretty good as 1" contours, just saying.
- Wi-Fi® connection1 on land opens up a world of possibilities on the water.
Choose from 7 new vivid color options to see fish and structure in maximum contrast and clarity on your 7" fishfinder.
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.
Nobody knows the waters you fish better than you. With the STRIKER Vivid 7sv fishfinder, you can store up to 2 million acres of maps with 1’ contours.
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.
The STRIKER Vivid 7sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.
1 Requires ActiveCaptain app on your compatible smartphone paired to the STRIKER Vivid 7sv fishfinder; see Garmin.com/ble
SpecificationsGeneral | |
PHYSICAL DIMENSIONS | 9.3" x 5.5" x 2.3" (23.5 x 14.0 x 5.8 cm) |
DISPLAY RESOLUTION | 800 x 480 pixels |
DISPLAY TYPE | WVGA color |
WEIGHT | 1.7 lbs (0.8 kg) |
WATER RATING | IPX7 |
TRANSMIT POWER | 500 W (RMS) |
Sonar Features & Specifications | |
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE | Yes |
DUAL-BEAM (77/200 KHZ) SONAR CAPABLE | Yes |
FREQUENCIES SUPPORTED | Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü and SideVü 260/455/800 kHz |
BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) | Yes |
WATER TEMPERATURE LOG AND GRAPH | Yes |
Fishfinder Features | |
SPLIT-SCREEN ZOOM | Yes |
ULTRASCROLL® (DISPLAYS FISH TARGETS AT HIGHER BOAT SPEEDS) | Yes |
FISH SYMBOL ID (HELPS IDENTIFY FISH TARGETS) | Yes |
AUTOGAIN TECHNOLOGY (MINIMIZES CLUTTER, MAXIMIZES TARGETS) | Yes |
ADJUSTABLE DEPTH LINE (MEASURES DEPTH OF UNDERWATER OBJECTS) | Yes |
A-SCOPE (REAL TIME DISPLAY OF FISH PASSING THROUGH TRANSDUCER BEAM) | Yes |
WATER TEMPERATURE SENSOR INCLUDED | Yes |
Additional | |
One 4-pin transducer port | Yes |
One 4-pin SideVü transducer port | Yes |
Wireless Connectivity | Yes |
Quickdraw Contours | Yes |
Integrated GPS | Yes |
Mark Waypoints | Yes |
Course over Ground (COG) | Yes |
Current draw @ 12V | 0.67A |
What's in the Box:
- STRIKER Vivid 7sv fishfinder
- GT52HW-TM transducer
- Power/data cable
- 12-pin to dual 4-pin transducer adapter cable
- Tilt/swivel mount
- Hardware
- Garmin bumper sticker
- Documentation
