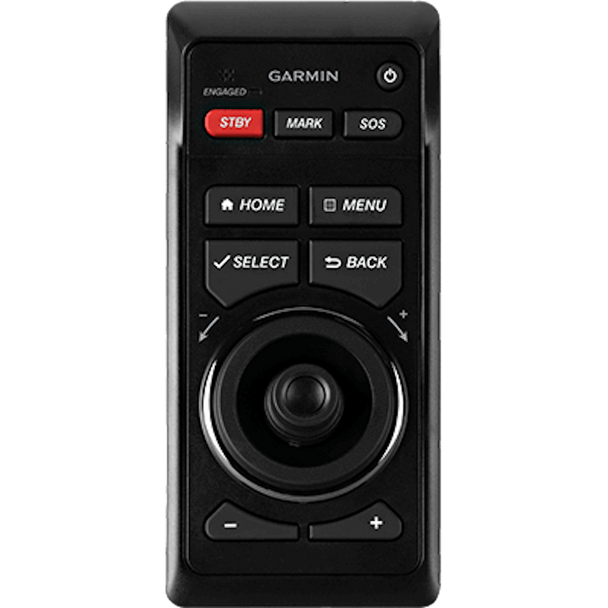

Garmin 010-01024-00 Grid Remote Input Device 010-01024-00

Garmin's remote input device provides full control of all GPSMAP® 8000 Glass Helm series units. Rotary knob and joystick controls provide navigation through menus and screens and allows you to seamlessly navigate between monitors at a station - all while controlling single or multiple 8000-series monitors and multifunctional displays (MFDs) with 1 device. GRID can be integrated into a captain?s chair for a low-profile controlling solution.

• Dimensions (W H D): 3 1/16" x 6 7/8" x 2 3/8" (77 x 174.8 x 60 mm)
• Weight: 9.1 oz. (258 g)
• Temperature range: From 5 to 158 F (from -15 to 70 C)
• Material: Fully gasketed, high-impact plastic, waterproof to IPX7 standards
• Input power: 10-35 Vdc
• Fuse: 7.5 A, 42 V fast-acting
• Maximum power usage at 10 Vdc: 2.8 W
• Typical current draw at 12 Vdc: 100 mA
• Maximum current draw at 12 Vdc: 280 mA
• Compass-safe distance: 14" (356 mm)

What's in the Box:

• GRID (Garmin Remote Input Device)
• Mounting hardware
• Power cable
• Network cable (6 ft)
• Documentation
