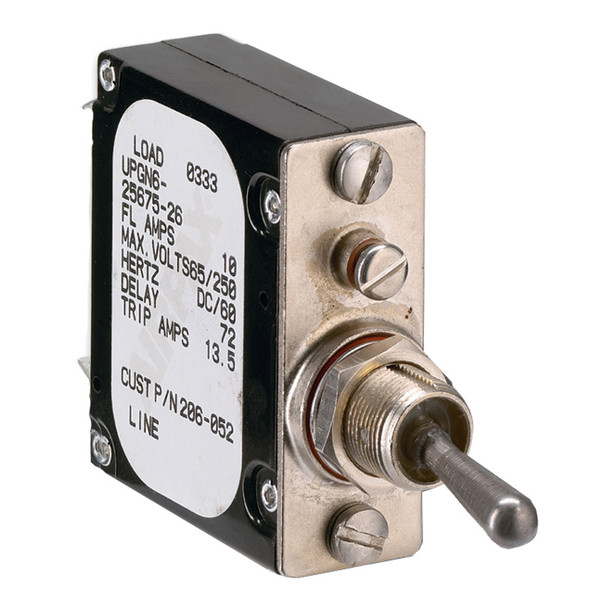

Paneltronics Breaker 25 Amps A-Frame Magnetic Waterproof 206-055S

(No reviews yet) Write a Review
Paneltronics:
Authorized Reseller
Warranty:
Full Manufacturer Warranty
MPN:
206-055S
SKU:
CW29832
UPC:
602290201442
$45.99


Delivery:

Estimated delivery if you place order before 3pm EST
Usually ships the same business day.

Returns:

30 day returns.   |   See Details

Frequently bought together:
Paneltronics bPanel Seal / Waterroof "A" Frame Magnetic Circuit Breakers
  • Branch AC or DC circuit breaker for Paneltronics electrical distribution panels
  • Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers
  • UL Recognized (UL 1077) for use in the U.S.A., and CSA Certified for use in Canada
  • Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1)
  • Manual reset (ABYC E-11.10.1.5.6 and E-11.10.2.1.1)
    Specifications

    • Handle Color: Metal with Silicon rubber seal
    • Maximum Amperage: 50 Amps
    • Maximum Voltage/AIC: 32 VDC/ 2,500 Amps with no Back-up Fuse (ABYC E-11.10.1.5.5)
    • Rated Switch Cycles: Rated Switch Cycles 10,000 actuations at rated current and voltage
    • Electrical Hardware: Screw 10-32 x 3/8" pan combo head (P/N 197-188)
    • Mounting Hardware: Hex nut 1/2-32 (supplied with circuit breaker), Lockwasher 1/2" internal tooth (supplied with circuit breaker)
    • Optional Boot Black silicone rubber (P/N 048-015)
      Manufacturer : Paneltronics
      Manufacturer Part No : 206-055S
      UPC : 602290201442
