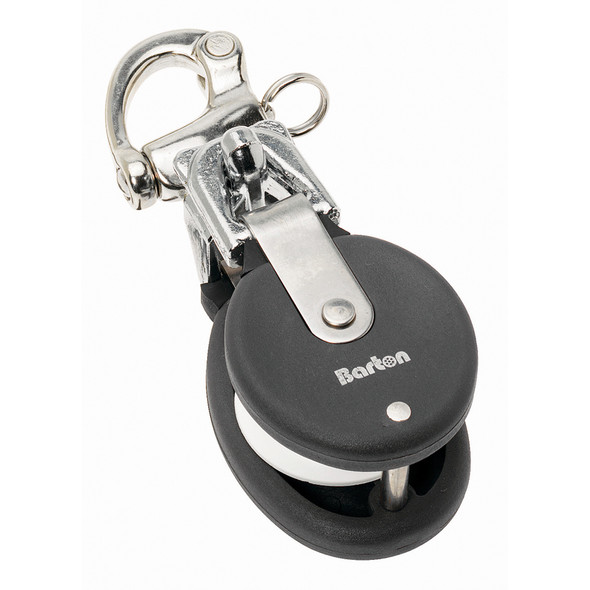

Barton Marine Small Snatch Block w/Stainless Snap Shackle 90 301
Barton Marine
(No reviews yet)
Write a Review
- Barton Marine:
- Authorized Reseller
- Warranty:
- Full Manufacturer Warranty
- MPN:
- 90 301
- SKU:
- CW46646
- UPC:
- 5035088903016
Delivery:
Estimated delivery
if you place order before 3pm EST
Usually ships the same business day.
Returns:
30 day returns. | See Details
Frequently bought together:
Barton Marine BSmall Snatch Block w/Stainless Sna Shackle
Unique to Barton, these are probably the smallest block of this type available.
Extremely compact and strong, with a multitude of uses on cruising or racing yachts where a large unit is not required.
Important Note - Snatch Blocks:
When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block 'tumbling' and causing damage by snagging.
Sheave: 35mm (1.38")
Sheave Width:17mm (0.67")
Rope: 12mm (0.47")
Break Load: 800kg (1,763.7lbs)
SWL: 400kg (881.8lbs)
Length: 110mm (4.33")
Weight: 170g (0.37lbs)
Manufacturer : Barton Marine
Manufacturer Part No : 90 301
UPC : 5035088903016
Unique to Barton, these are probably the smallest block of this type available.
Extremely compact and strong, with a multitude of uses on cruising or racing yachts where a large unit is not required.
Important Note - Snatch Blocks:
When using small and medium snatch blocks on a toe rail, a bungee line should be attached to the becket to prevent the block 'tumbling' and causing damage by snagging.
Sheave: 35mm (1.38")
Sheave Width:17mm (0.67")
Rope: 12mm (0.47")
Break Load: 800kg (1,763.7lbs)
SWL: 400kg (881.8lbs)
Length: 110mm (4.33")
Weight: 170g (0.37lbs)
Manufacturer : Barton Marine
Manufacturer Part No : 90 301
UPC : 5035088903016
